| Stage | Knots | Fixings | φ | Weights | Loss |
|---|---|---|---|---|---|
| 1 | simple grid | no | 0 | uniform | L2 (OLS) |
| 2 | turn knots + fixings | yes | 0 | uniform | L2 (OLS) |
| 3 | Stage 2 fixed grid | yes | 0.0464159 | uniform | L2 + smooth |
| 4 | Stage 2 fixed grid | yes | 0.0464159 | vol_x_oi (WLS) | L2 + smooth |
| 5 | Stage 2 fixed grid | yes | 0.0464159 | vol_x_oi (WLS) | Huber (robust) |
SOFR curve fitting from SR1 and SR3 futures
Progressive SOFR step-curve fit from SR1/SR3 futures with per-stage interactive diagnostics.
Resources: Source code (.py)
Problem and instruments
We want a forward-looking SOFR curve implied by listed CME SOFR futures:
- SR1 (1M) futures, quoted as a simple arithmetic average of daily SOFR over the contract month.
- SR3 (3M) futures, quoted as a daily compounded rate over the contract quarter (ACT/360 compounding convention).
The inputs are settlement-implied rates (from settlement prices), plus contract metadata that maps each future to its reference accrual window.
Curve parametrization as a step function with FOMC discontinuities
We parameterize the instantaneous overnight forward as a piecewise-constant step function:
- The curve is defined on a knot grid of dates.
- A constant level
theta_kapplies on each interval[knot_k, knot_{k+1}). - The knot grid can include FOMC effective dates (and other optional boundaries), allowing discrete jumps where policy changes are expected to matter.
This representation is deliberately simple: it is flexible enough to match futures pricing while remaining interpretable and stable under regularization.
Pricing of SR1 and SR3
Each contract’s reference window is decomposed into cash-business-day anchored accrual blocks with integer day counts d_{i,j}. Each block is mapped to a curve step index k(i,j), producing the daily forward rate used for that block:
\[r_{i,j}(\theta) = \theta_{k(i,j)}\quad(\%)\]
Contract model-implied rates:
- SR1 (1M): arithmetic average of daily forwards across the month (with day weights).
- SR3 (3M): daily compounding (ACT/360), then annualized back to a 3M rate.
Fitting objective and smoothness penalty (butterfly second differences)
Let y_i be the market-implied futures rate and \hat{R}_i(\theta) the model-implied rate under SR1/SR3 conventions. Define the pricing error in basis points:
\[\varepsilon_i(\theta) = 100\,(y_i-\hat{R}_i(\theta))\quad(\text{bp})\]
To stabilize the step curve we add a smoothness penalty based on the butterfly (second difference) of adjacent step levels:
\[b_k(\theta)=100\,(2\theta_k-\theta_{k-1}-\theta_{k+1})\quad(\text{bp})\]
For linear-loss stages, the objective is:
\[\min_\theta \left[\sum_i w_i^{\text{eff}}\,\varepsilon_i(\theta)^2 + \phi\sum_{k=1}^{K-2} b_k(\theta)^2\right]\]
where w_i^{eff} comes from the chosen weighting scheme (uniform or liquidity proxy), and \phi trades off fit vs smoothness.
Fitting progression (Stages 1–5)
The curve is fit progressively: each stage adds one modeling feature and we check what changes in the fitted curve and repricing diagnostics.
Stage summary
Metrics by stage
What changed vs previous stage
- Starting point (no previous stage): OLS, uniform weights, φ=0 (no smoothing), no realized fixings, simple knot grid.
Math (this stage)
\[\theta^{(1)}=\arg\min_\theta \sum_i \varepsilon_i(\theta)^2\]
This stage establishes a minimal, fully data-driven curve under SR1/SR3 pricing conventions. It is intentionally flexible, which makes it a good baseline but also a useful reference for identifying where later constraints (turn knots, smoothing, weighting, robust loss) materially change the fitted shape.

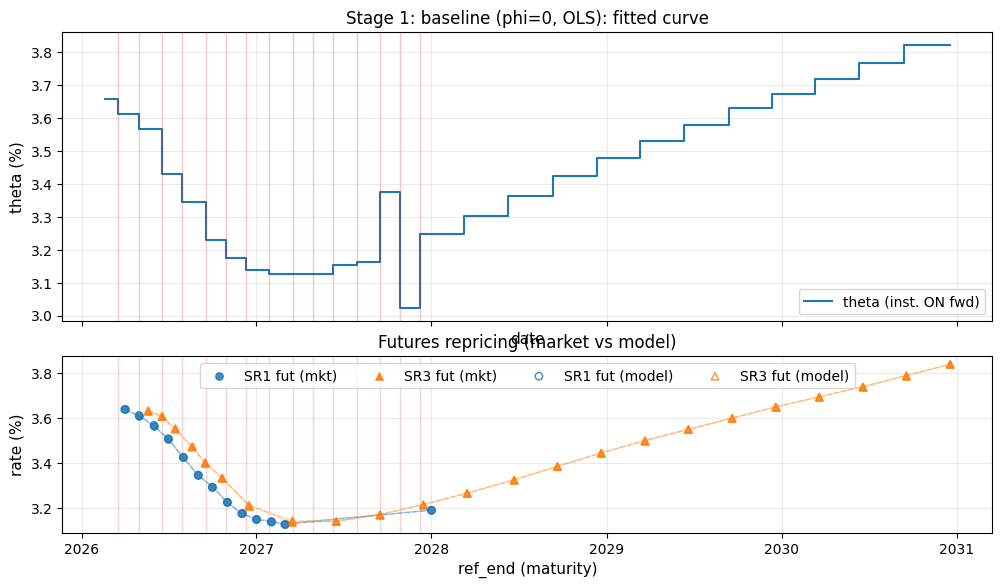

Why the curve can look strange in Stage 1
In Stage 1 we are trying to infer a day-by-day forward curve even though each futures contract only tells us an average rate over a whole month (SR1) or a whole quarter (SR3). That means many different step curves can match the same set of futures prices almost equally well. Because Stage 1 has no smoothing term (\phi=0), the solver is not told to prefer a smooth shape, so it can sometimes pick a jagged curve that still reprices the futures very closely.
A common trigger is when we include many knot dates (for example contract boundaries and policy-related dates): that gives the curve many short segments, but the inputs are still mostly long-window averages.
Alternative approach: we could reduce the number of knots in the early stages (drop or merge some knot dates). In this project we intentionally keep the grid flexible and defer “making it look sensible” to Stage 3, where we add an explicit smoothness preference.

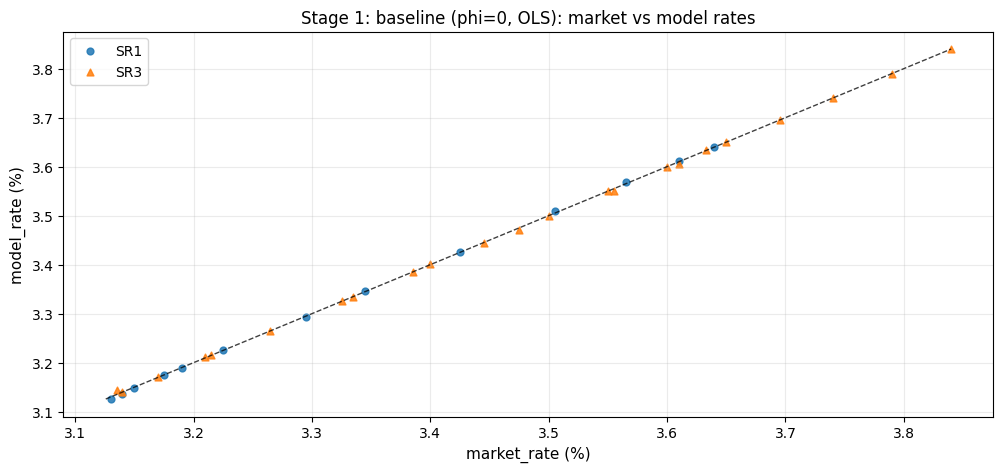

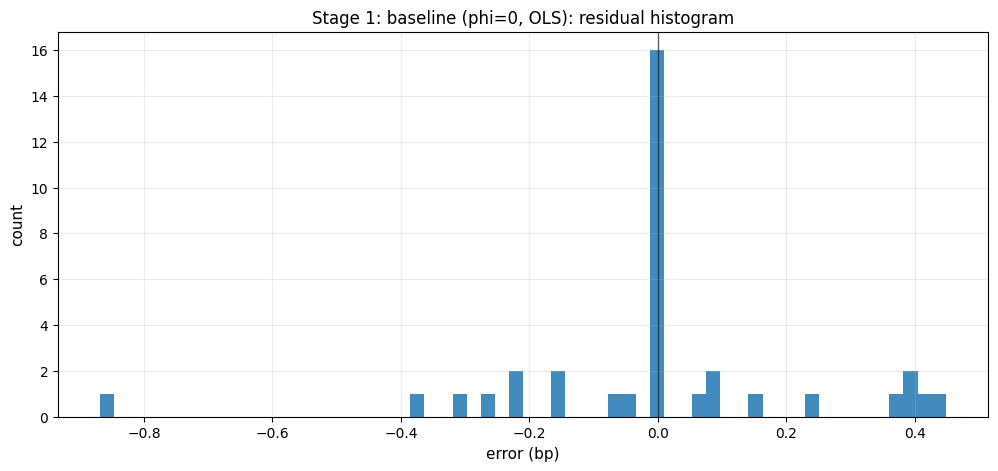

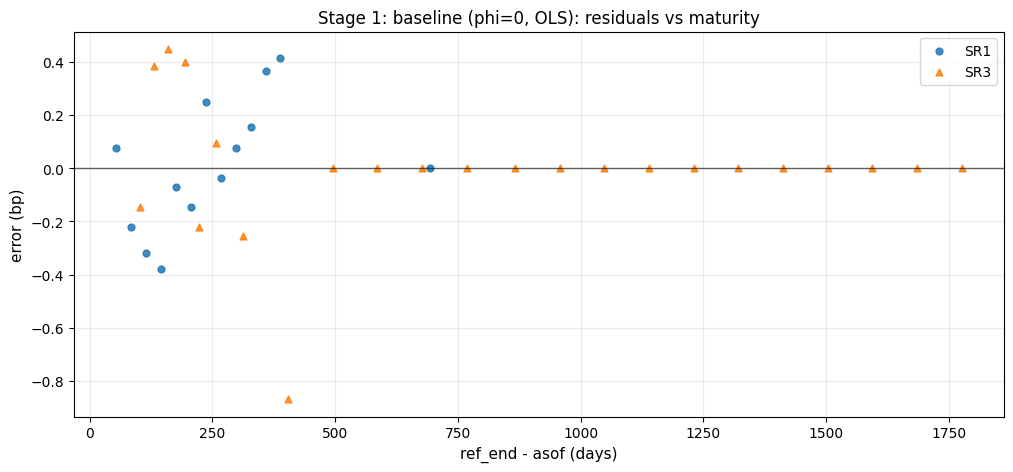

Residual diagnostics (Stage 1)
Interactive curve over time
What changed vs previous stage
- Add quarter/year-end “turn” knots.
- Include realized SOFR fixings for in-progress contracts.
- Keep OLS, uniform weights, φ=0.
Key change (realized fixings)
\[r_{i,j}(\theta)= r^{fix}_{i,j}\ \text{if date} \le \text{last fixing date},\ \text{else}\ \theta_{k(i,j)}\]
This stage improves short-dated realism: once a contract has partially accrued, the realized portion should not be “re-fit” by the forward curve. Adding turn knots gives the curve explicit places where it is allowed to change around quarter-ends / year-ends, where the market often prices discontinuities.

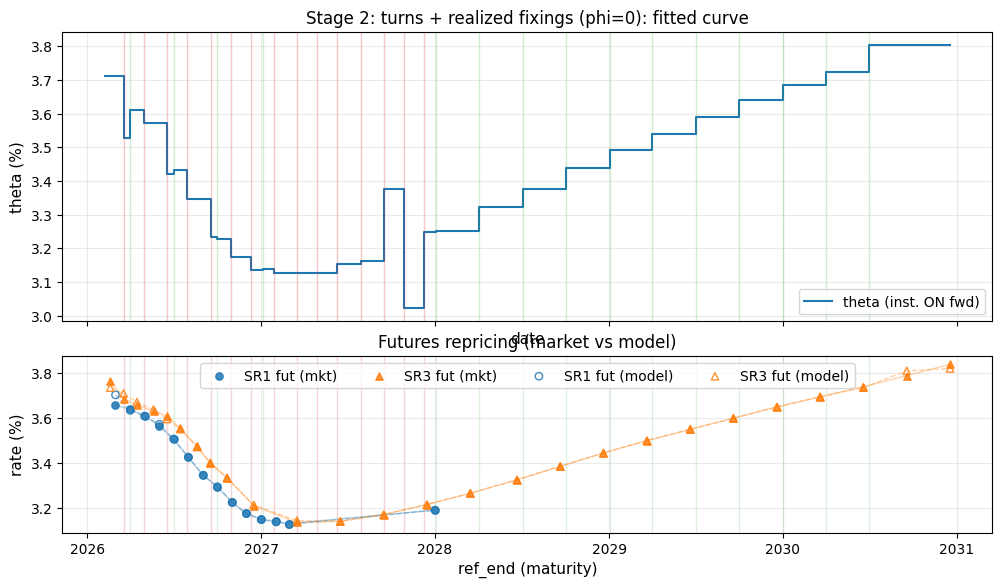

Why the curve can still look strange in Stage 2 (and why Stage 3 fixes it)
Stage 2 improves realism by (i) respecting realized SOFR fixings for contracts that are already partly accrued and (ii) adding turn dates. However, Stage 2 is still fitted with \phi=0, so we still have not told the model to prefer a smooth curve.
Near contract expiry, only a small number of days remain unknown. If the market-implied full-period average differs from the realized-to-date average, the implied average for the remaining few days can become extreme. The step curve can express this as sharp spikes or rapid up/down moves at the very front end, even when the overall futures repricing looks fine.
This is exactly why the next stage adds smoothing: Stage 3 keeps the same knot grid but adds a penalty for rapid back-and-forth moves between adjacent steps. As the “Metrics by stage” table shows, this sharply reduces the curve’s roughness while keeping the fit quality in a reasonable range.

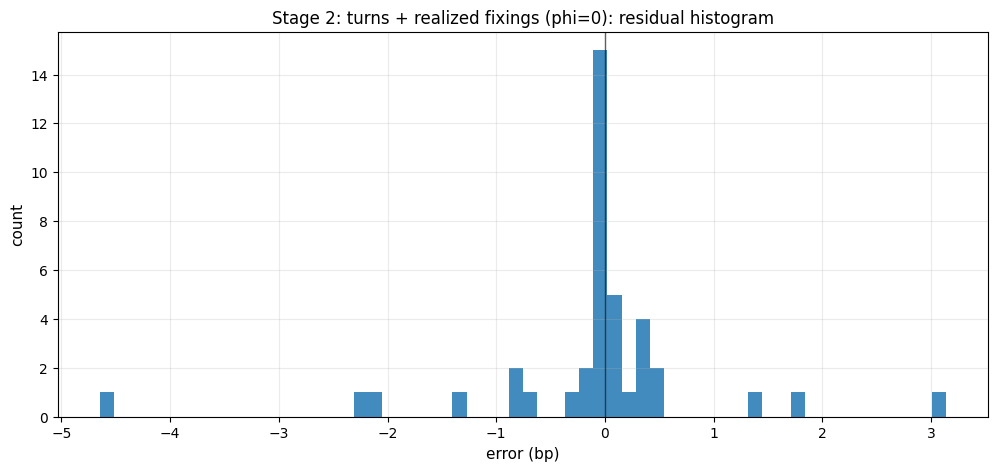

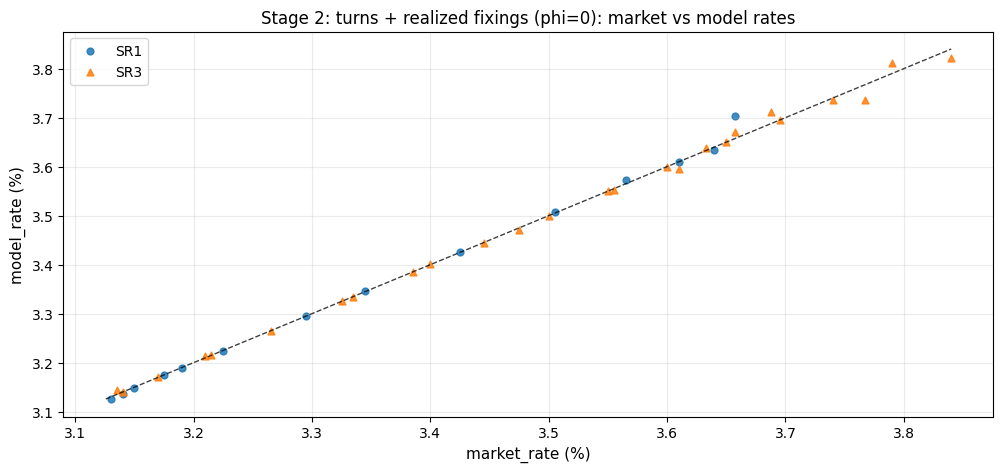

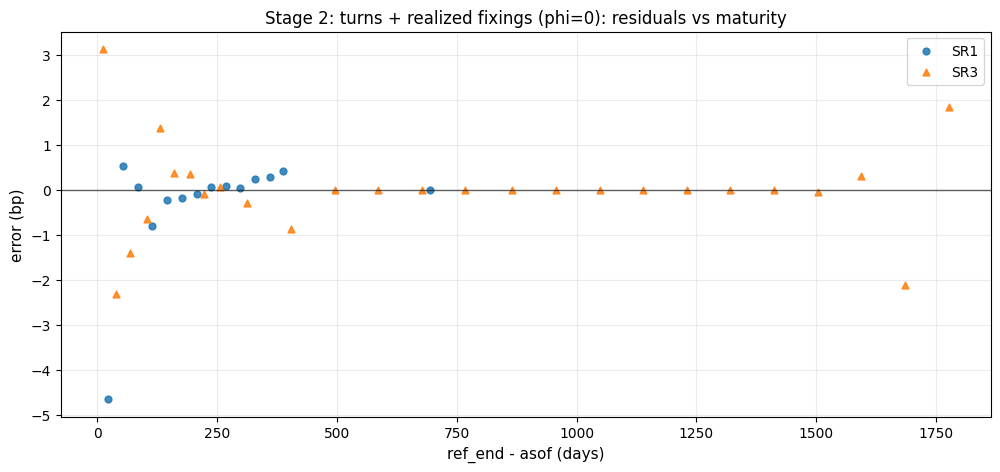

Residual diagnostics (Stage 2)
Interactive curve over time

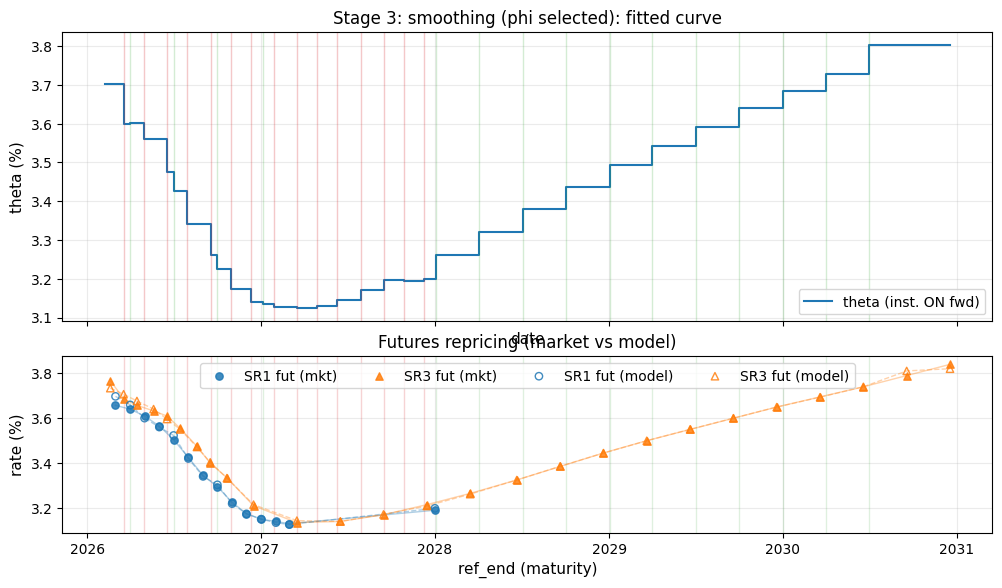

What changed vs previous stage
- Keep Stage 2 grid, add butterfly smoothness penalty.
- Choose φ via a scan.
Math (this stage)
\[\theta^{(3)}=\arg\min_\theta \left[\sum_i w_i^{eff}\varepsilon_i(\theta)^2 + \phi\sum_k b_k(\theta)^2\right]\]
\[b_k(\theta) = 100\,(2\theta_k - \theta_{k-1} - \theta_{k+1})\quad (\text{bp})\]
The smoothness term trades off local curve “wiggles” against repricing error. We choose φ via a simple scan (reported in the stage tables above): as φ rises, RMSE typically degrades slowly at first while roughness drops materially; beyond a point, φ over-smooths and fit quality deteriorates.

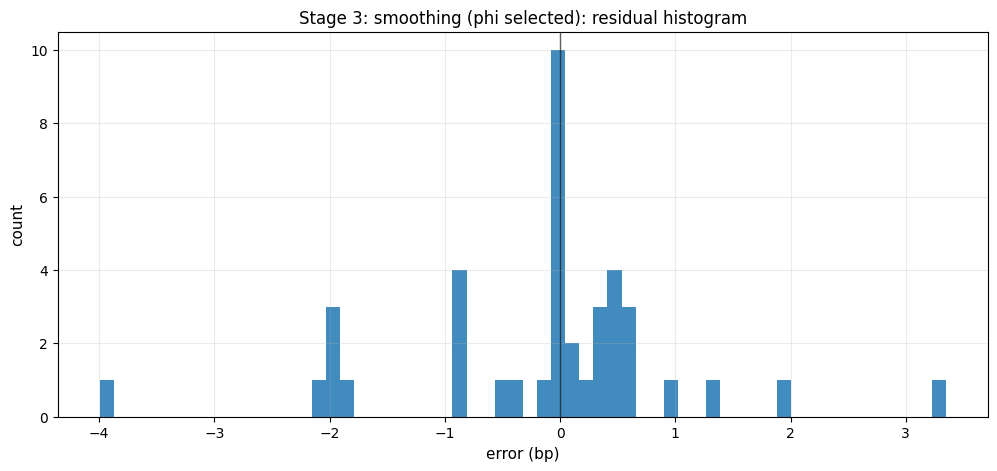

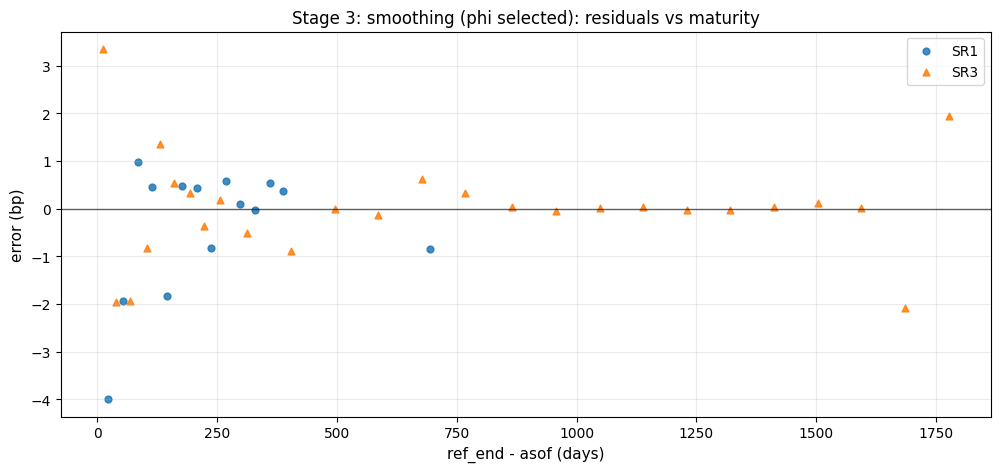

Residual diagnostics (Stage 3)
Interactive curve over time
What changed vs previous stage
- Keep Stage 3, add liquidity weights (default
vol_x_oi).
Example weighting
\[\text{raw}_i = \sqrt{\text{volume}_i \cdot \text{open\_interest}_i}\]
\[w_i=\text{clip}\left(\frac{\text{raw}_i}{\text{median}(\text{raw}_j\ \text{within same root})},\ w_{min},\ w_{max}\right)\]
This stage reduces the influence of thin or noisy instruments: the curve prioritizes fitting liquid contracts and allows less-liquid points to deviate when they conflict with the broader surface. It’s a practical step toward stability when using the curve downstream (risk, carry/roll, relative value).

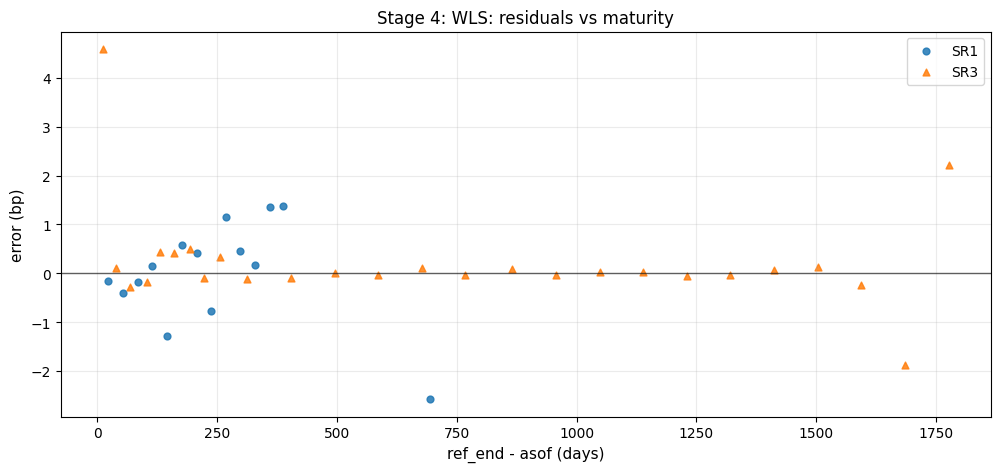

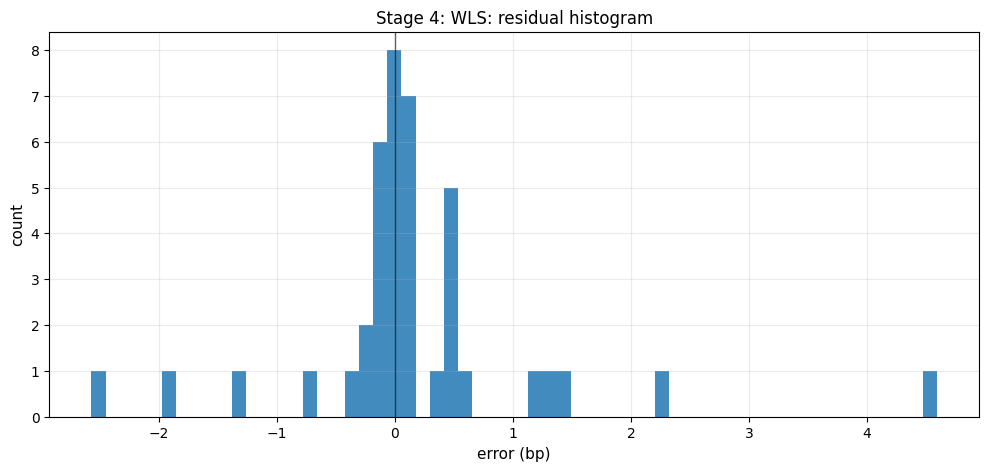

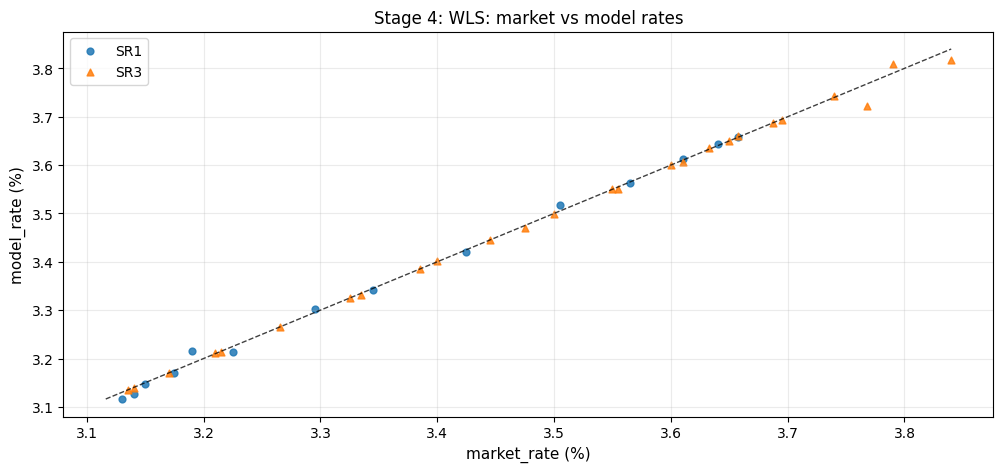

Residual diagnostics (Stage 4)

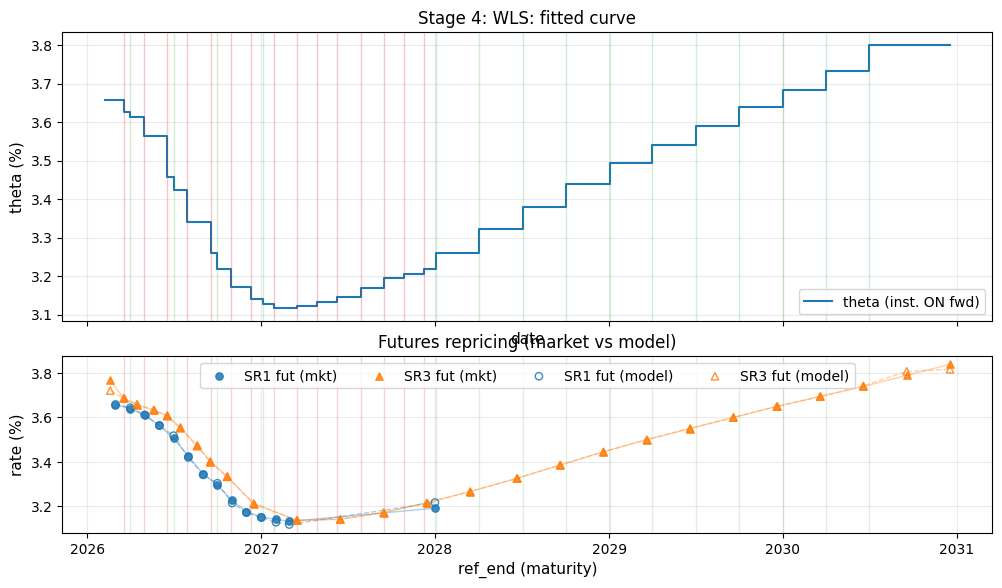

Interactive curve over time
What changed vs previous stage
- Keep Stage 4, switch to Huber robust loss.
Define stacked residual vector
\[r(\theta) = \left[\sqrt{w_i^{eff}}\varepsilon_i(\theta)\right]_i \ \oplus\ \left[\sqrt{\phi}\,b_k(\theta)\right]_k\]
Optimize
\[\theta^{(5)} = \arg\min_\theta \sum_j \rho\left(\frac{r_j(\theta)}{s}\right)\]
Huber
\[\rho(u)=0.5u^2\ \text{if }|u|\le 1,\quad =|u|-0.5\ \text{if }|u|>1\]
This final stage keeps the same modeling structure but reduces sensitivity to outliers and occasional “bad” settlements. In practice, the curve tends to become more stable day-to-day, with outliers absorbed by the robust loss rather than by localized kinks in θ.

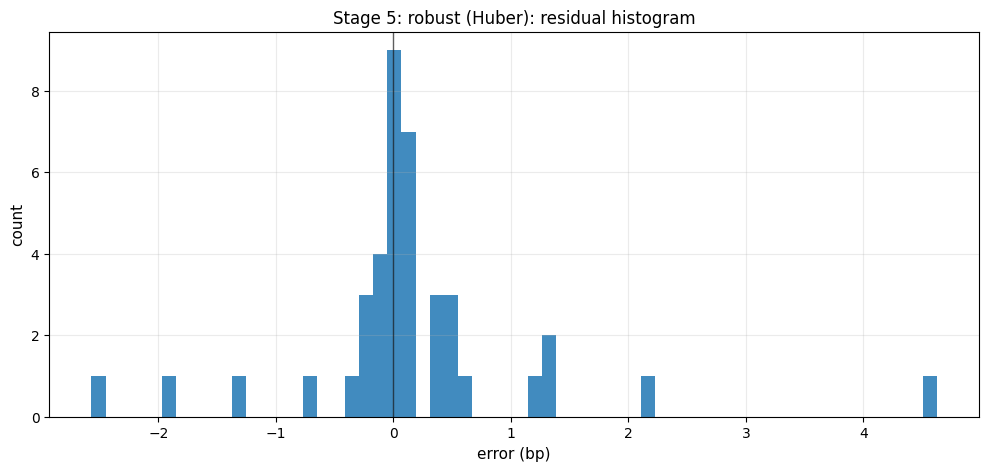

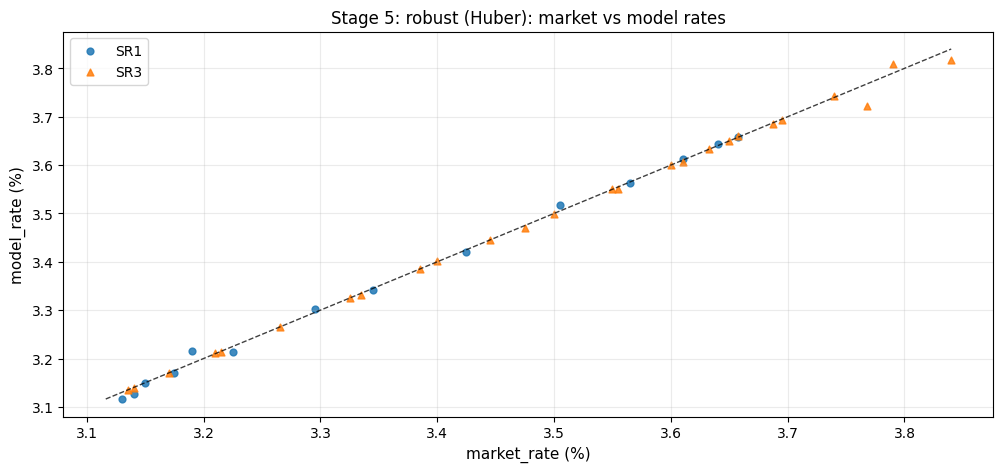

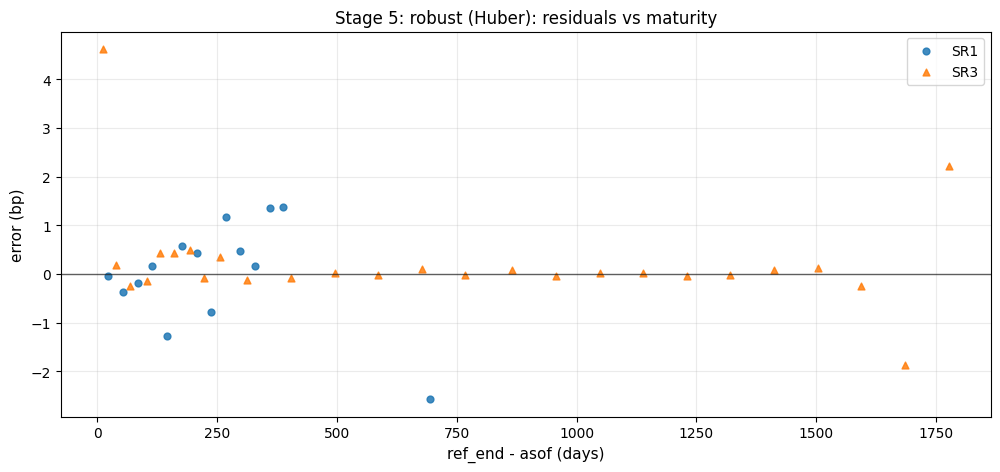

Residual diagnostics (Stage 5)

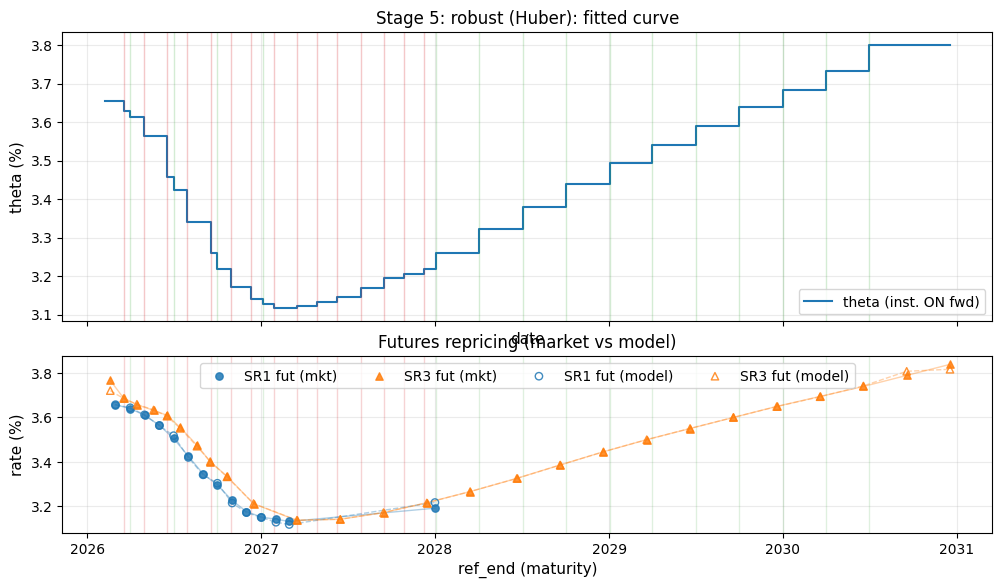

Interactive curve over time
Limitations and extensions
- Instrument set: SR1/SR3 futures cover only up to listed maturities; extrapolation beyond the last contract is not directly identified without additional instruments or priors.
- Day-count / calendar details: the fit depends on precise cash-business-day anchoring and holiday conventions; calendar mismatches show up first in short-dated contracts.
- Regularization choice: a step function plus second-difference smoothing is simple and robust, but other parameterizations (splines, monotone constraints, or stochastic-process priors) may be preferable for certain downstream uses.
- Uncertainty: the report focuses on a point estimate. Extensions could include bootstrapped/parametric uncertainty bands, stress scenarios, or diagnostics by contract bucket.
Conclusion: what each stage adds
- Stage 1: minimal baseline (OLS,
\phi=0). Reprices very well but can look jagged because we are fitting long-window averages with a detailed step curve. - Stage 2: adds realized fixings and turn dates. More realistic treatment of in-progress contracts, but still can look jagged because
\phi=0. - Stage 3: adds smoothing (
\phi>0). This is the key step that turns the flexible step curve into a stable, interpretable curve shape. - Stage 4: adds liquidity weights (WLS). Prioritizes fitting liquid contracts and reduces the impact of thin/noisy points.
- Stage 5: adds robust loss (Huber). Reduces sensitivity to occasional bad settlements/outliers and improves day-to-day stability.
Stages 1–2 are diagnostic baselines that show what the raw instrument set can imply without a smoothness preference. Stages 3–5 are the practical candidates for downstream use.
